# Build Setup Mobile Farm Guide

## What needs to be prepared.

### 1.Phone Plan:

Select a sufficient number of Android phones such as Samsung, Xiaomi, Huawei, Redmi, VIVO, etc Android 6.0 and above. from the second-hand market or other channels according to your needs. (Contains battery)

<figure><img src="https://1443965649-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fnr7mODcx4OmqI75xOUOV%2Fuploads%2FexDgpaheqOaRFLB8wxdJ%2Fe60bb40ed6ba528515a42421544e528.jpg?alt=media&#x26;token=dd17aeb1-e302-4f10-b59f-74a65f1ad0ae" alt="what is box phone farm some3c.com"><figcaption><p>some3c.com</p></figcaption></figure>

### 2.Requirement

It is best to use the same model, including the screen or prepare a screen to enable USB debugging mode, or the motherboard of the mobile phone, set it up to automatically start when powered on (Remove the battery and switch to powering the motherboard)

<figure><img src="https://1443965649-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fnr7mODcx4OmqI75xOUOV%2Fuploads%2FB0nFClVhrgI6obvN6gBH%2F%E7%9B%B4%E4%BE%9B%E7%BA%BF2.jpg?alt=media&#x26;token=d738a03c-17c8-46c4-9811-d3941f90716a" alt="setup box phone farm some3c.com"><figcaption><p>some3c.com</p></figcaption></figure>

{% hint style="info" %}
Not all models support power supply from the motherboard power cord

If it is not in the list, you can inquire whether it supports customization.
{% endhint %}

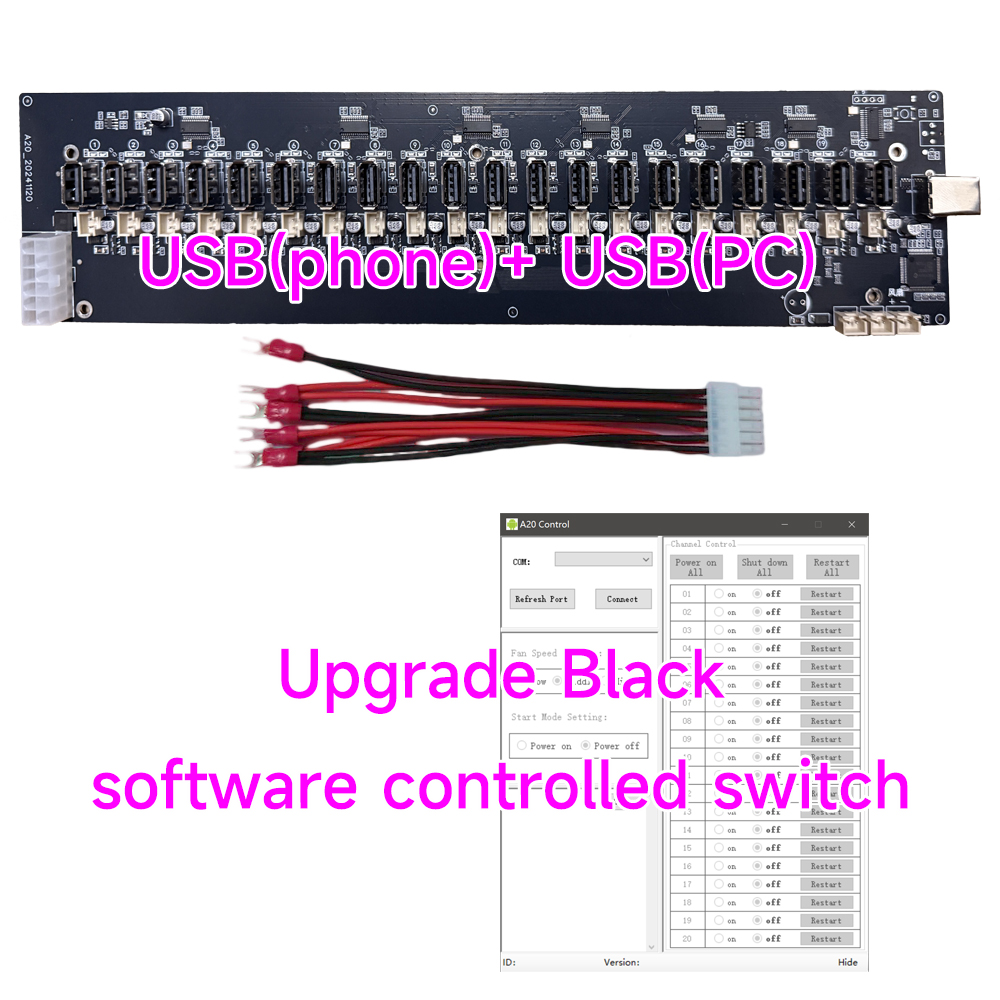

### 3.**USB HUB Board**

**Used to connect all mobile phones to the computer. (Standard 20 or 21 USB ports)**

**Software Package download**

{% file src="<https://1443965649-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fnr7mODcx4OmqI75xOUOV%2Fuploads%2FhuxZwzy2ZxbejuoLivyo%2FA20.rar?alt=media&token=2594b167-5ae1-41fd-9e39-bca1aa270c85>" %}

<figure><img src="https://1443965649-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fnr7mODcx4OmqI75xOUOV%2Fuploads%2FbkteLxWRyz2hAW6HXES1%2FBalckusb.jpg?alt=media&#x26;token=2806cbd7-0351-46ee-b45a-b3148eb2c5be" alt="phone farming some3c.com" width="563"><figcaption><p>some3c.com</p></figcaption></figure>

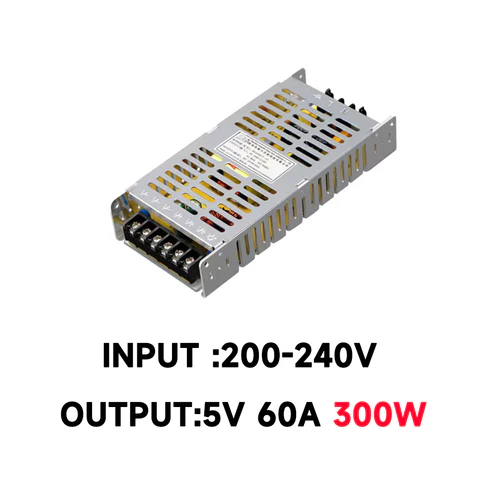

### **4.Power adapter**

**Provide stable power for all mobile phones (5V/40A or 5V/60A).**

<figure><img src="https://1443965649-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fnr7mODcx4OmqI75xOUOV%2Fuploads%2F4eI9GLefXL8StjKkAG9G%2Fimage.png?alt=media&#x26;token=f2b1fa96-4104-4008-9af4-3f35cb2fa2db" alt="phone farming some3c.com"><figcaption><p>some3c.com</p></figcaption></figure>

### 5.**Data Cable**

**Connect the mobile phone and USB hub.**

<figure><img src="https://1443965649-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fnr7mODcx4OmqI75xOUOV%2Fuploads%2F72EU57gghcsqkZZFhddi%2Fimage.png?alt=media&#x26;token=cf75581d-22fe-43bd-8fe5-62d8c34d15b7" alt="phone farming some3c.com"><figcaption><p>some3c.com</p></figcaption></figure>

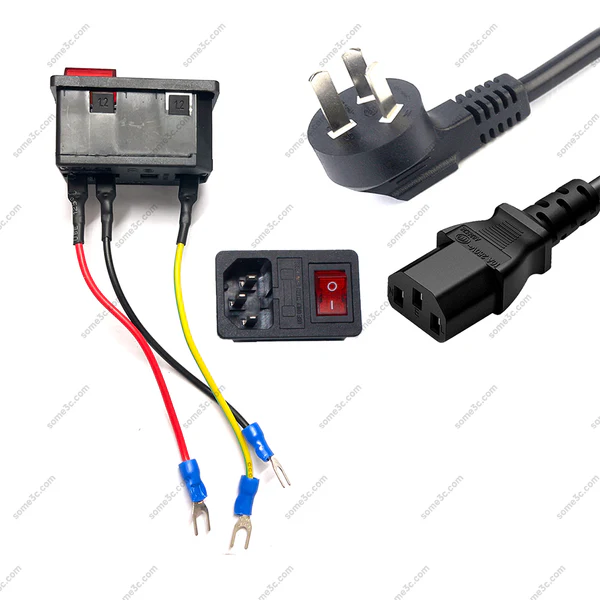

### **6.Socket and Power cord**

&#x20;  **more convenient wiring**

<figure><img src="https://1443965649-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fnr7mODcx4OmqI75xOUOV%2Fuploads%2FbZx9jngo9zqktytkH5SW%2Fimage.png?alt=media&#x26;token=62f96e02-4308-4ae6-9981-d4b127bb7576" alt="phone farming some3c.com"><figcaption><p>some3c.com</p></figcaption></figure>

### 7.Chassis and Dock HUB&#x20;

Place the mobile phone and keep it tidy. Save space  "[ Click to view](https://www.some3c.com/collections/phonefarm) "

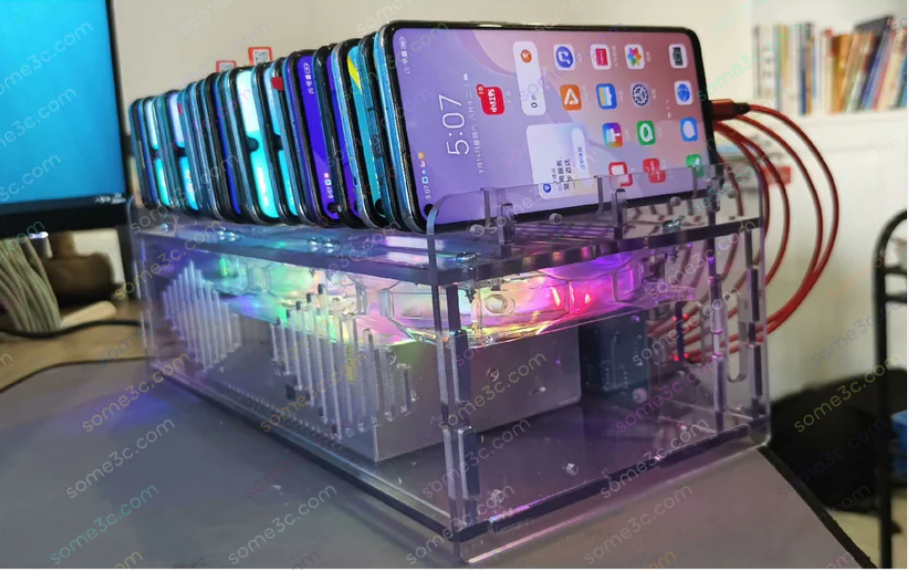

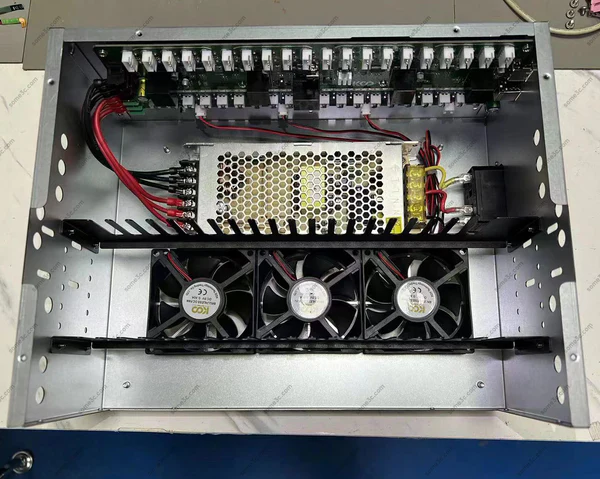

| Chassis (power supply & data separation)                                                                                                                                                                                                                                   | Dock HUB(power supply & data integration)                                                                                                                                                                                                                                                 |
| -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- | ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- |
| <img src="https://1443965649-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fnr7mODcx4OmqI75xOUOV%2Fuploads%2FzCO1D1srvdP3Za8Z1xO5%2Fimage.png?alt=media&#x26;token=549b3da9-3010-429b-8ccf-5adf7a8fa921" alt="Suitable for DIY" data-size="original"> | <img src="https://1443965649-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fnr7mODcx4OmqI75xOUOV%2Fuploads%2FjamfoAk9eAGpqmCIJ32q%2Fimage.png?alt=media&#x26;token=66f52a45-4877-4813-97c8-0e1800938dda" alt="Works on complete mobile phones" data-size="original"> |

### 8.Mirror Android phone screen to computer

It is recommended to use Panda Mirror Screen Casting. It is permanently free for 40 mobile phones. It has powerful functions. "[Click Down](https://doc.some3c.com/panda-manual/download)"

<figure><img src="https://1443965649-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fnr7mODcx4OmqI75xOUOV%2Fuploads%2Fq2o90M91wHtiAU7XgBZY%2Fmain1.jpg?alt=media&#x26;token=0cc9429e-a96e-426a-8e3f-11463a5b229e" alt="phone farm price some3c.com"><figcaption><p>some3c.com</p></figcaption></figure>

### 9.Buy and View.

All the mentioned accessories, chassis, USB hub, can be found in Some3C store."[ Click to view](https://www.some3c.com/collections/phonefarm) "

> <mark style="color:orange;">**Of course, we also provide some boxes that fully include phone motherboards, provide SIM card slots, and cameras as options. For details, please click:**</mark> [<mark style="color:blue;">**Phonefarm.some3c.com**</mark>](http://phonefarm.some3c.com/)

## **Pnstallation Videos Provide**

* [ How to enable USB debugging](https://doc.some3c.com/panda-manual/usb-connect-phone).
* [How to connect via WiFi](https://doc.some3c.com/panda-manual/wifi-mode-connection).
* [How to connect via Ethernet.](https://doc.some3c.com/panda-manual/lan-mode-connection)
* [Xiaomi, Redmi, Huawei, OPPO connection problem.](https://doc.some3c.com/panda-manual/connection-faq)

### 1.USB HUB board Build.

{% embed url="<https://www.youtube.com/shorts/nvtNwAa1k74?feature=share>" %}
some3c.com
{% endembed %}

### 2. Chassis Build.

{% embed url="<https://youtu.be/Y2X0gFnLCAI>" %}
some3c.com
{% endembed %}

### 3.Enable USB Debugging

{% embed url="<https://youtube.com/shorts/34voJqntBN8?feature=share>" %}

{% embed url="<https://www.youtube.com/shorts/xoh435wfRAs?feature=share>" %}


---
